Power Budget for a 3000-Nit Micro OLED in Battery-Powered AR Glasses
In battery-powered AR glasses the display is not the only consumer of power, but it is the one the user adjusts. A 0.49-inch Micro OLED at 1920x1080 with 3000 nits, 90Hz and a MIPI interface offers enough brightness to compete with daylight, which is exactly why its contribution has to be understood rather than assumed. The power budget that matters is measured at the battery across a realistic usage mix, not estimated from a panel datasheet. This article covers how to build that budget, why dimming method affects it, and how standby behaviour quietly decides whether the product meets its target.

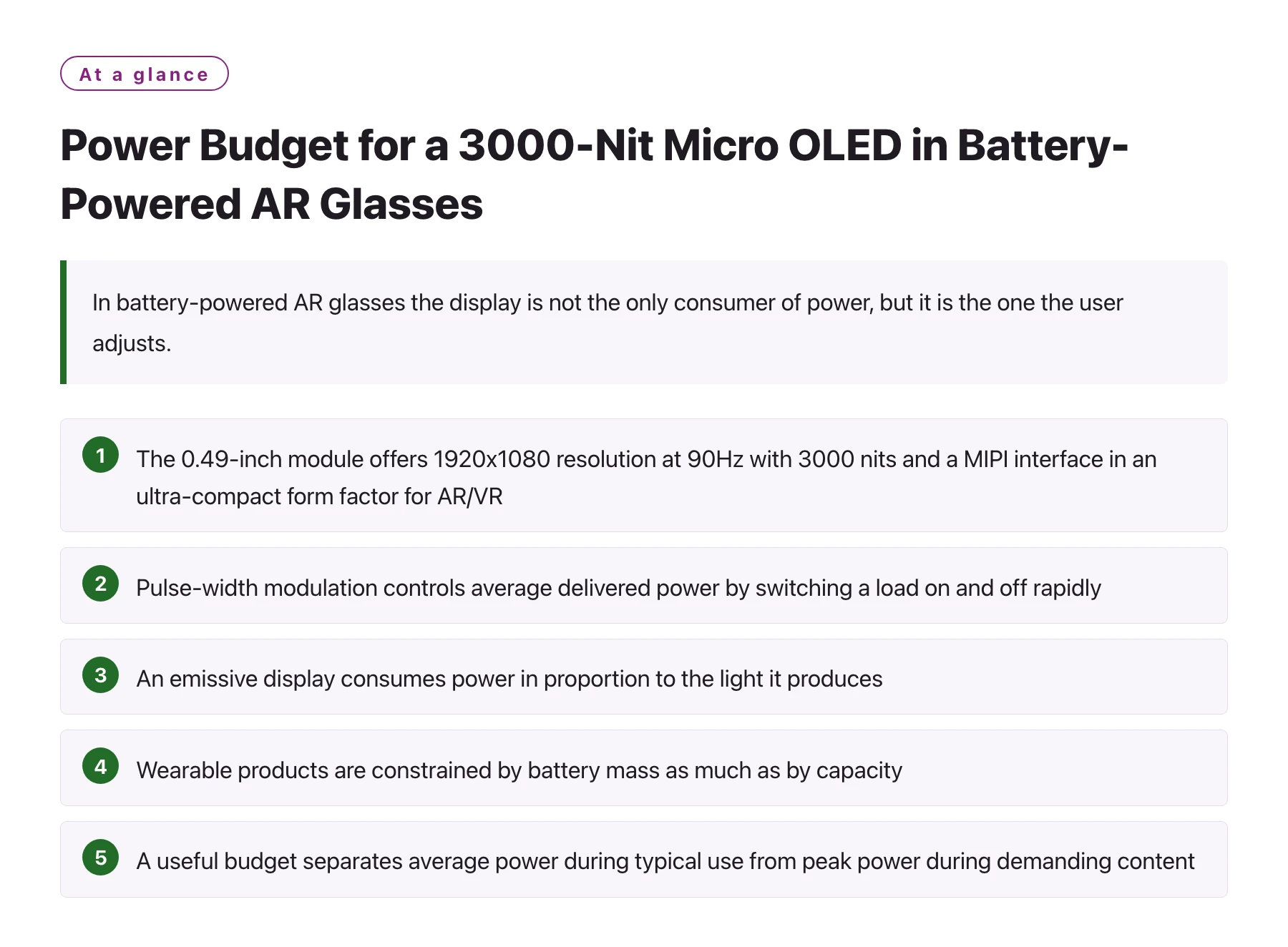

Key takeawaysThe 0.49-inch module offers 1920x1080 resolution at 90Hz with 3000 nits and a MIPI interface in an ultra-compact form factor for AR/VR, medical imaging and industrial applications. · Pulse-width modulation controls average delivered power by switching a load on and off rapidly, which is why it is commonly used to set display brightness [1]. · An emissive display consumes power in proportion to the light it produces, so lowering the operating brightness is a direct reduction in panel power [2]. · Wearable products are constrained by battery mass as much as by capacity, which turns every milliwatt into a mechanical decision about the enclosure [3]. · A useful budget separates average power during typical use from peak power during demanding content, because the battery and the thermal path are stressed by different parts of the profile.
AR glasses have a hard power problem: the battery is small because the device sits on the face, and the loads are not. The display, the processor, the wireless link and the sensor suite all want current, and the user expects a working day of use rather than an hour.
A 0.49-inch Micro OLED at 1920x1080 with 3000 nits, 90Hz and a MIPI interface provides the brightness headroom that outdoor use demands, and being emissive it converts current into light rather than into a lit backlight behind a shutter.
The sections below build the budget in the order that produces useful answers: the loads and their behaviour, the dimming method, the measurement approach, and the standby design that decides how much charge the device loses while it is not being used.
The loads that share the battery
A realistic AR power budget has four blocks: the display and its link, the application processor, the wireless radio, and the sensors and their processing. The display's share depends on the image being shown, because an emissive panel draws current in proportion to the light it produces, so a bright white full-field image costs far more than text on a dark background [2].
The processor and radio are bursty. Their average contribution over a session can be modest while their peaks are high enough to affect battery voltage, which matters when the same battery also supplies the display. Supply integrity is therefore part of the budget: a sagging rail can disturb the display link even when the average current is within specification.
Sensors are often underestimated because their average current is low, but they run continuously. A sensor subsystem that draws a small current all the time can consume more charge over a day than a display that runs at high brightness for twenty minutes.
Budget blocks and how each one behaves
| Load | Typical behaviour | What changes it |
|---|---|---|
| Display panel | Proportional to emitted light, so it tracks content and brightness [2]. | Operating brightness, image content, refresh rate. |
| Display link | Steady while active, with additional cost as the data rate rises. | Refresh rate, lane count and the host's transmitter configuration. |
| Processor | Bursty, with peaks during rendering and tracking. | Frame rate, scene complexity and the power management policy. |
| Wireless | Bursty, with duty cycle set by the application. | Data volume, connection quality and sleep behaviour. |
| Sensors and tracking | Continuous at a low level, with periodic processing spikes. | Sampling rate and how much filtering runs on the main processor. |
Why the dimming method belongs in the budget
Brightness is the user's main control over the budget, and the way the driver implements that control affects both power and perceived quality. Pulse-width modulation switches the load on and off rapidly and varies the proportion of on-time to set average power [1], which keeps colour stable as brightness falls but introduces a switching frequency that has to be chosen to avoid visible flicker and interference.
Alternative dimming approaches vary the drive current instead, which avoids switching artefacts but can shift colour balance at low brightness. Neither method is universally better; what matters is that the choice is deliberate and that the flicker behaviour is verified at the brightness levels users actually select, including the dimmest setting.
The budget should record power at several brightness steps rather than at a single point, because users adjust brightness constantly. A design that is efficient at 30 percent brightness and inefficient at 80 percent will behave very differently in summer than in winter.
Measuring a budget that predicts real battery life
Standby and the decisions that are easy to postpone
Standby behaviour rarely appears in a specification and frequently determines whether the product feels usable. An emissive panel can be switched fully off rather than showing a dimmed image, which removes its contribution entirely, but the rest of the system has to reach a comparable state at the same time or the saving is lost.
The related decision is what the device does while it is worn but idle. Keeping the display active for a head-up overlay costs power continuously, while aggressive blanking saves charge at the price of a visible wake-up delay. The right compromise depends on the application, and it is easier to find with the measured profiles than with a specification argument.
Wearable design adds a mechanical dimension to these choices, because battery capacity is limited by the mass the user will tolerate on their face [3]. Improving the power profile is often the only way to extend runtime, since making the battery bigger makes the product worse to wear.
For programmes still comparing image sources, it is worth reviewing the 1920x1080 Micro OLED display with MIPI interface power behaviour together with the optical throughput, since a panel that needs less brightness to reach the same perceived luminance is cheaper in battery terms as well.
Sources
Frequently asked questions
How much of an AR headset's battery does the display use?
It depends on content, brightness and refresh rate, and it is best measured rather than assumed. An emissive panel draws in proportion to the light it emits, so bright full-field content costs much more than a mostly dark interface.
Does lowering the refresh rate save meaningful power?
It reduces the display link cost and can lower panel power, at the price of more visible motion artefacts during head movement. The saving should be quantified against the user experience cost before it becomes a default policy.
What is the risk of dimming by pulse-width modulation?
If the switching frequency is poorly chosen, some users perceive flicker, and the switching can also interfere with nearby circuits. Both effects should be checked at the brightness levels users actually select, including the dimmest setting.
Why measure at the battery rather than at the display connector?
Measuring at the panel ignores conversion losses, rail overheads and the interaction between loads. Battery-level measurement is what actually predicts runtime, and it exposes supply interactions that a bench measurement of one rail hides.
